Semiconductor Industry Manufacturing

Ultra-precision manufacturing for semiconductor equipment, wafer handling systems, test fixtures, and production tooling. Material certifications, inspection documentation, and geometry-specific tolerance review help align each program to its actual manufacturing requirements.

As tight as ±0.0002"
Ultra Precision
Inspection Docs
Quote-Scoped
Program requirements reviewed
ESD-safe material options
Inspection documentation available
Semiconductor manufacturing — wafer handling & test fixtures

Why Semiconductor Companies Choose MakerStage

Semiconductor programs often depend on precision machining, documentation, and supplier-fit review. We scope those requirements up front so the quote reflects the real build.

If your program overlaps with regulated builds or motion hardware, compare medical device OEM manufacturing and robotics manufacturing for actuators.

Ultra-Precision Machining

Tolerances as tight as ±0.0002" (±5µm) for critical semiconductor components

Documentation & Traceability

Material certifications, dimensional inspection reports, surface finish measurements, and traceability packages available by program

Semiconductor Materials

Metal, polymer, ceramic, and specialty material options for fixtures, tooling, and equipment components

Program-Specific Review

Special handling, controlled-environment, and supplier-fit requirements reviewed during RFQ intake

Semiconductor Manufacturing Capabilities

Semiconductor-focused manufacturing options for wafer handling, test fixtures, and production tooling. Special handling, documentation, and supplier requirements are confirmed during RFQ review.

Ultra-Precision CNC Machining

Ultra-Precision Tolerances

Semiconductor Specifications

Tolerances:

±0.0002" (±5µm)

Surface Finish:

Ra 0.4µm achievable

Inspection:

CMM and dimensional reports available

Lead Time:

Quote-based by geometry and inspection scope

Semiconductor Materials

Silicon (Ultra-pure)Aluminum 6061-T6Stainless Steel 316LTitanium Grade 5Inconel 718PEEK (ESD-Safe)POM (Antistatic)Ceramic (Al2O3)

Semiconductor Applications

  • Wafer handling equipment
  • Semiconductor test fixtures
  • Chip packaging tooling
  • Metrology equipment components

Learn more about CNC machining →

Debating in-house vs. outsourcing for test fixtures? Our In-House vs. Outsource Analysis includes a worked example for a PEEK IC test socket housing.

3D Printing for Fixtures & Tooling

Prototype and Bridge Builds

Build Specifications

Layer Height:

25µm (SLA)

Use Case:

Fixtures, jigs, housings, and tooling

Material Options:

ESD-safe and engineering polymers available

Lead Time:

Quote-based by process and post-processing

ESD-Safe Materials

ESD-Safe ABSAntistatic Nylon PA12Conductive PLAESD PEEKCarbon Fiber PETGAntistatic Resin

If your program requires controlled-environment workflows, that scope should be specified at RFQ review so supplier fit and documentation requirements can be confirmed before quote release.

Semiconductor Applications

  • Rapid prototyping fixtures
  • Custom test jigs
  • Equipment housings
  • Process development tooling

Learn more about 3D printing services →

Inspection & Documentation

Quality Records Available

Documentation Scope

Reports:

Dimensional and CMM reports

Certifications:

Material certs, CoCs, and MTRs

Surface Data:

Surface finish measurements available

Traceability:

Lot and heat traceability by requirement

Documentation Options

Dimensional Inspection ReportsCMM ReportsMaterial CertificationsCoCs / MTRsSurface Finish MeasurementsTraceability Records

Typical Use Cases

  • First-article inspection packages
  • Supplier qualification packets
  • Change-controlled repeat builds
  • Regulated or traceability-sensitive programs

Surface Treatment & Coating

Specialized Finishes

Finishing Scope

Surface Finish:

Ra 0.2µm with polishing

Finish Options:

Anodize, plating, passivation, polishing

Verification:

Surface finish measurement available

Lead Time:

Quote-based by finish and material

Surface Treatments

Hard AnodizingBlack AnodizingElectroless NickelPassivationPolishingBead Blasting

Semiconductor Applications

  • Fixture surfaces with wear or cleanliness requirements
  • Corrosion-resistant equipment components
  • Test and handling tooling
  • Drawings with explicit finish callouts
Standards & Compliance

Semiconductor Program Requirements & Controls

Semiconductor programs often depend on documentation, material selection, and supplier-fit requirements as much as machining itself. Those requirements should be defined up front so the quote matches the real scope.

Documentation Packages

Project-specific quality records can be packaged around the part requirements and your internal release process.

  • Dimensional inspection reports
  • CMM reports on request
  • Material certifications
  • Traceability documentation

Controlled-Environment Requests

For selected programs, controlled-environment workflows may be available through qualified partners. Scope must be confirmed during RFQ review.

  • Process-specific partner review
  • Quote-stage scope confirmation
  • Requirement matching by program
  • Documentation needs captured early

Sensitive Material & Handling Review

ESD-safe material options and special handling requirements should be specified at RFQ so supplier controls can be matched to the program.

  • ESD-safe material options
  • Requirement review before quote
  • Handling needs documented upfront
  • Supplier controls vary by program
Semiconductor Applications

Semiconductor Equipment Applications

We support semiconductor-adjacent parts and tooling where precision, repeatability, and documentation matter most.

Wafer Handling Fixtures

Handling hardware where repeatable geometry and careful material selection matter

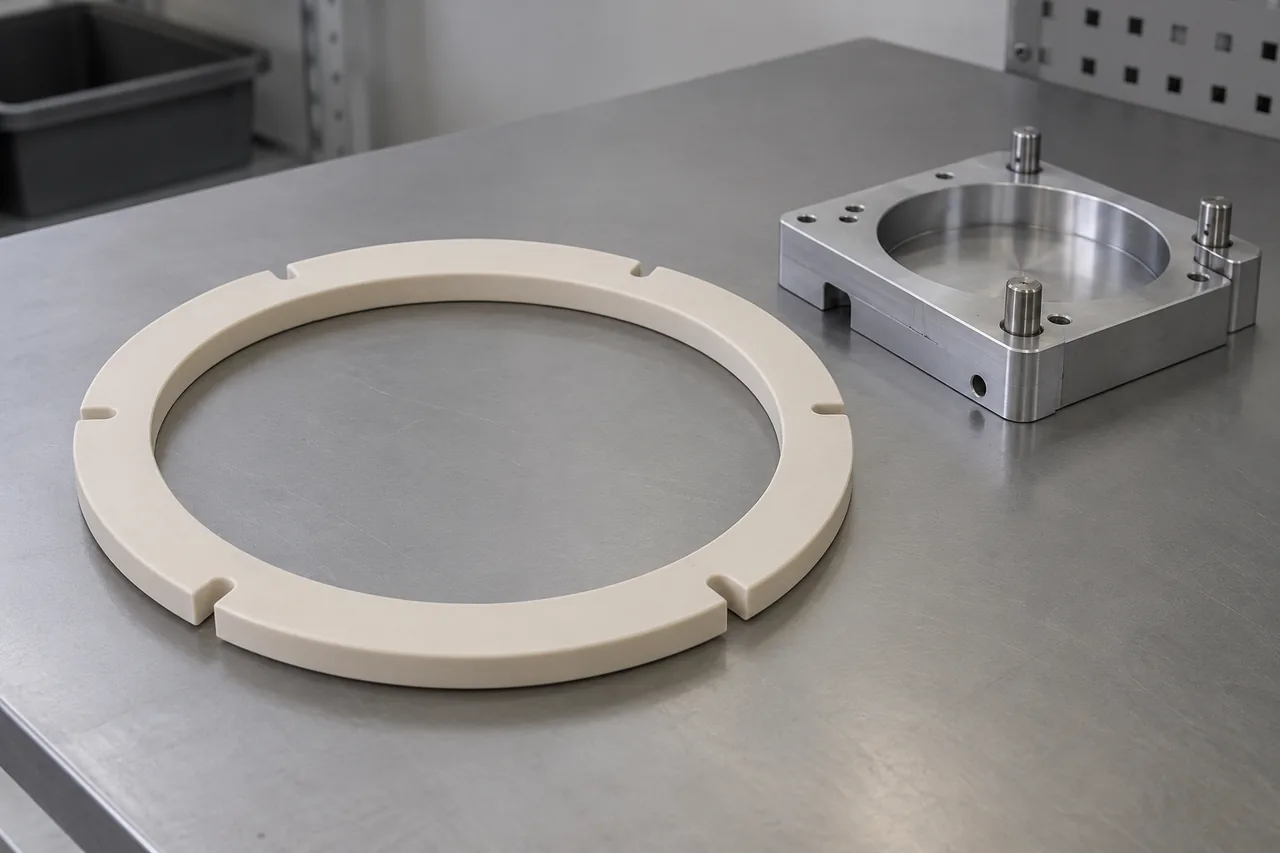

  • Wafer carriers and nests
  • Robot end-effector tooling
  • Alignment fixtures
  • Transfer hardware

Test Fixtures & Sockets

Prototype and production test setups that need dimensional consistency

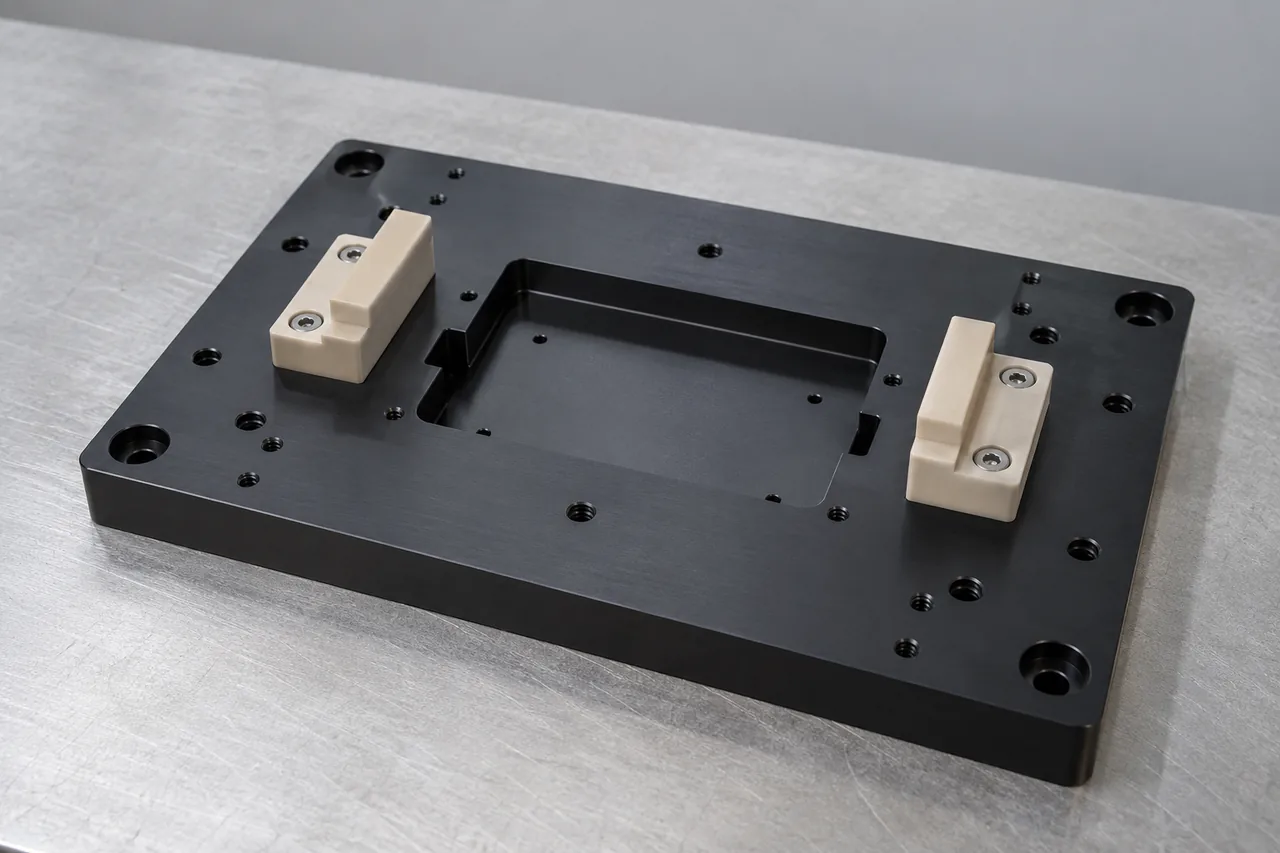

  • IC test fixture components
  • Socket housings
  • Custom jigs
  • Bench-top validation tooling

Metrology & Alignment Tooling

Inspection and alignment hardware with tight tolerance requirements

  • Reference nests
  • Gauge fixtures
  • Metrology fixtures
  • Optics and sensor mounts

Packaging & Handling Tooling

Tooling that protects delicate parts during movement, setup, and inspection

  • Tray tooling
  • Protective nests
  • Handling brackets
  • Changeover tooling

Process Equipment Components

Equipment builds where geometry, finish, and documentation need to stay controlled

  • Brackets and mounts
  • Panels and plates
  • Machined housings
  • Custom hardware

Prototype Fixtures & R&D Tooling

Early-stage builds that need fast iteration before a repeat production release

  • Concept fixtures
  • Pilot-line tooling
  • Lab hardware
  • Iteration-ready machined parts
Frequently Asked Questions

Semiconductor Manufacturing FAQ

Common questions from semiconductor companies about our manufacturing capabilities, documentation options, and supplier review process.

What tolerances can you achieve for semiconductor applications?
For critical machined features, we can quote tolerances as tight as ±0.0002" (±5µm) on geometry-, material-, and inspection-dependent programs. Surface finish and inspection requirements should be called out on the drawing so process capability can be confirmed during RFQ review.
Do you have cleanroom manufacturing capabilities?
For selected programs, controlled-environment workflows may be available through qualified partners. If your part requires a specific ISO class, process scope, or documentation package, include that requirement in the RFQ so supplier fit can be confirmed before quote release.
What ESD protection measures do you have in place?
ESD-safe material options are available for selected fixtures and tooling. If your program requires facility-level ESD controls or handling documentation, specify those requirements during RFQ review so they can be matched to the right supplier workflow.
Which materials are suitable for semiconductor applications?
We can source materials such as silicon, aluminum 6061-T6, stainless steel 316L, Inconel 718, PEEK, antistatic POM, and selected ceramics depending on the application. Certification and traceability requirements should be specified at RFQ so the material package matches the program need.
Can you handle both prototyping and production volumes?
Yes. We support both prototype builds and ongoing production programs. Lead time and release planning depend on process choice, material availability, inspection scope, finishing, and documentation requirements.
What documentation do you provide for semiconductor parts?
Documentation packages can include dimensional inspection reports, CMM reports, material certifications, CoCs or MTRs, surface finish measurements, and traceability records depending on the project requirements defined at RFQ.
