What busbar components can MakerStage quote?

MakerStage can quote customer-designed flat and formed copper bars with controlled profiles, holes, slots, bends, contact regions, machined features, and approved finishes when the drawing package defines the requirements.

Does MakerStage size busbars or validate electrical performance?

No. The OEM owns ampacity, current density, temperature rise, voltage drop, insulation, clearance, creepage, fault, dielectric, safety, and certification requirements. This page covers manufacturing to customer-controlled drawings.

What files are needed for a custom busbar quote?

Send CAD, controlled drawings, copper specification, thickness, temper when relevant, bend definitions, contact regions, finish and masking requirements, quantity, revision, and requested inspection or material records.

Can material and dimensional records be requested?

Yes. Material test reports, dimensional inspection reports, and CMM reports where appropriate can be requested when included in the quoted scope.

Does the quote include DFM review?

Yes. MakerStage includes a free DFM review with each RFQ to identify manufacturing questions around bends, holes, contact features, finishes, and inspectability.

Customer-designed copper component supply

Custom Busbar Component Manufacturing

Custom busbar component manufacturing for customer-designed copper bars, contact features, bends, holes, finishes, and dimensional inspection records.

MakerStage quotes the customer-defined copper geometry and requested records. The OEM retains electrical, thermal, safety, testing, and certification responsibility.

Quote busbar components

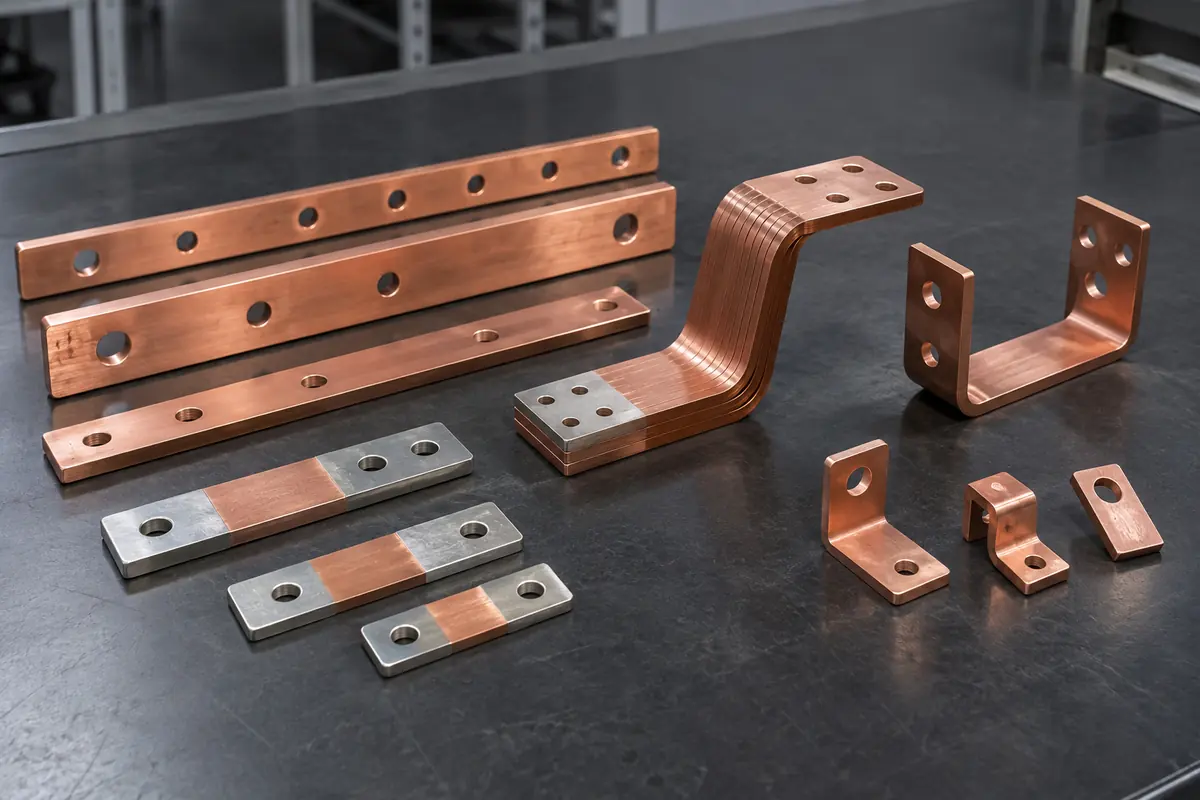

copper busbar components arranged on a manufacturing bench — Figure 1. Copper busbar components with holes and bends on a manufacturing bench.

Component scope

Quote copper geometry with explicit design ownership

This page owns the supplier decision for customer-designed busbar components. Detailed design considerations and copper finish terminology remain in the linked Resources.

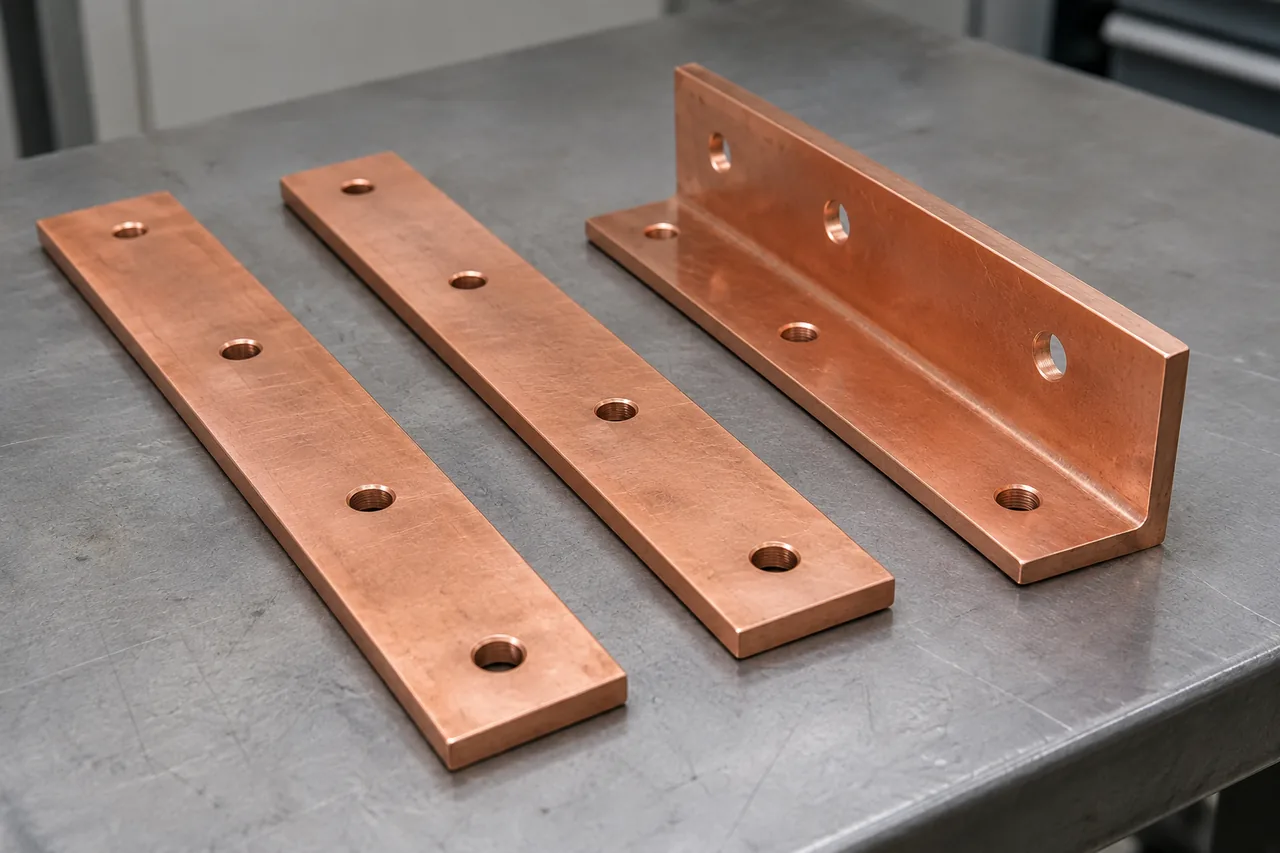

Flat busbar components

Customer-defined copper bars with controlled profile, holes, slots, edge condition, and contact regions.

Straight conductors and link bars
Hole and slot patterns tied to datums
Specified contact and non-contact surfaces

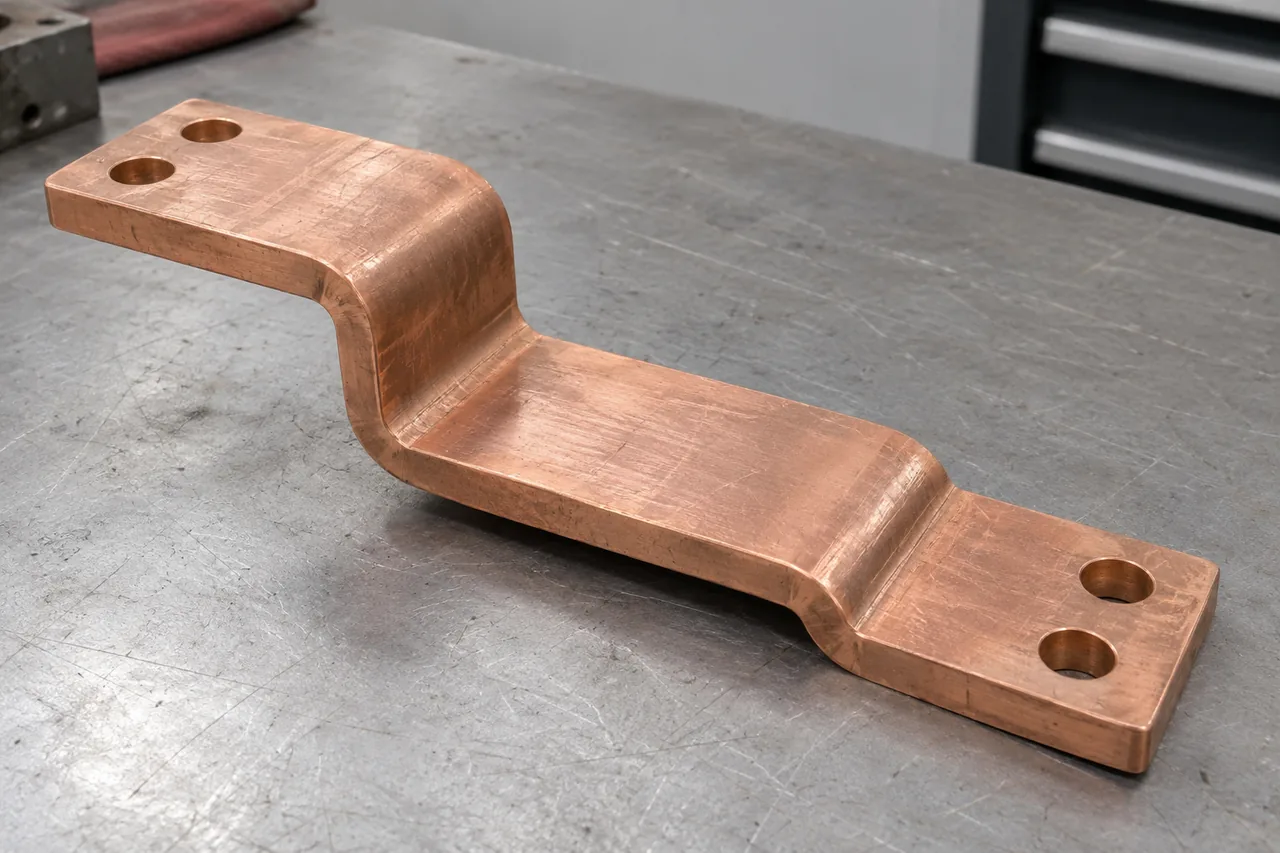

Formed busbar components

Customer-defined bends and offsets evaluated against the finished geometry and neighboring interfaces.

Single- and multi-bend copper bars
Offset and stepped geometries
Finished datums for assembly fit

Machined copper features

Customer-defined pockets, counterbores, threads, and interface features where machining is required.

Machined contact pads and faces
Threads, pockets, and reliefs
Dimensional and material records on request

Quote path

Select the route from the released drawing

Profile, holes, bends, contact regions, machined features, copper specification, finish, quantity, and inspection needs define the manufacturing path.

Manufacturing route	Quoted scope	Available evidence
Cutting and holemaking	Customer-defined profile, holes, slots, and edge requirements in specified copper material.	Material test reports and dimensional inspection are available on request when quoted.
Bending and forming	Customer-defined bends and offsets reviewed against finished datums, contact regions, and assembly interfaces.	Free DFM review identifies geometry or inspection questions before the quoted revision is released.
Machining and finishing	Customer-defined machined features and approved finishes with masking, contact regions, and acceptance criteria supplied.	CMM or dimensional reports can be requested for the quoted features where appropriate.

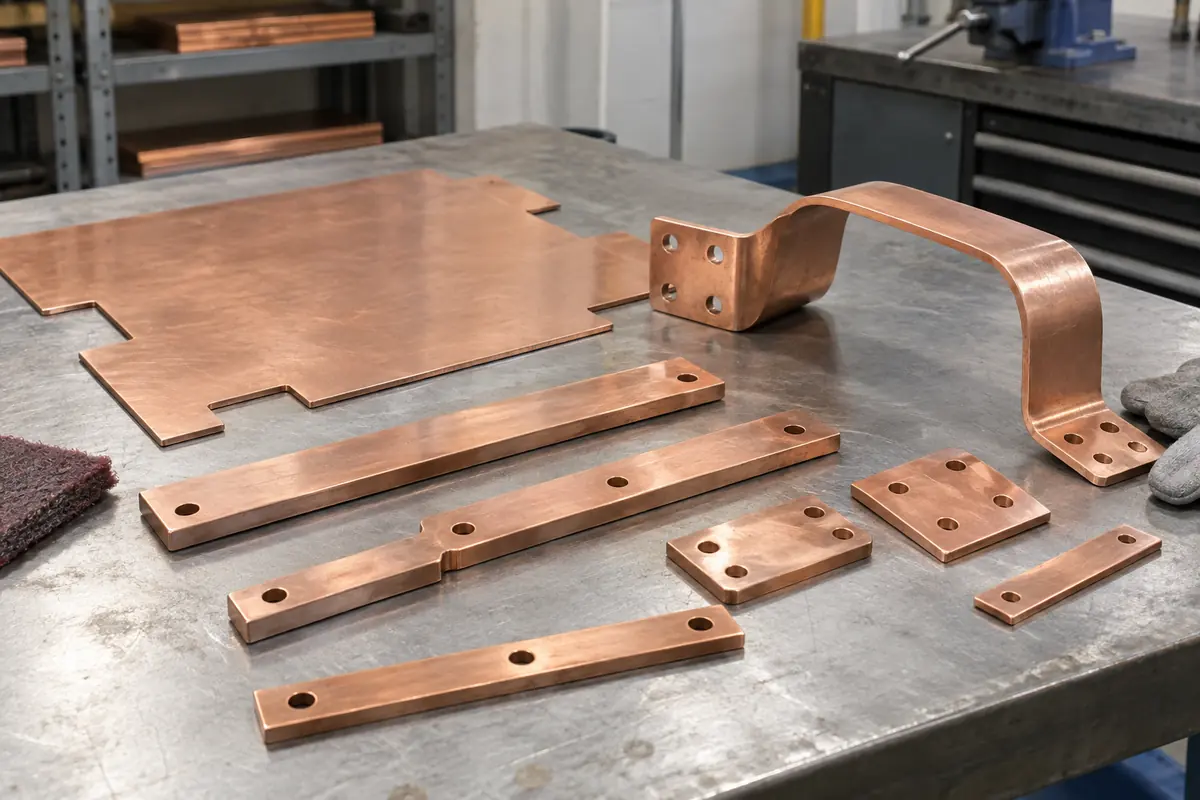

formed copper bars organized by cutting, holemaking, and bending stage — Figure 2. Formed copper bars grouped by cutting, holemaking, and bending stage.

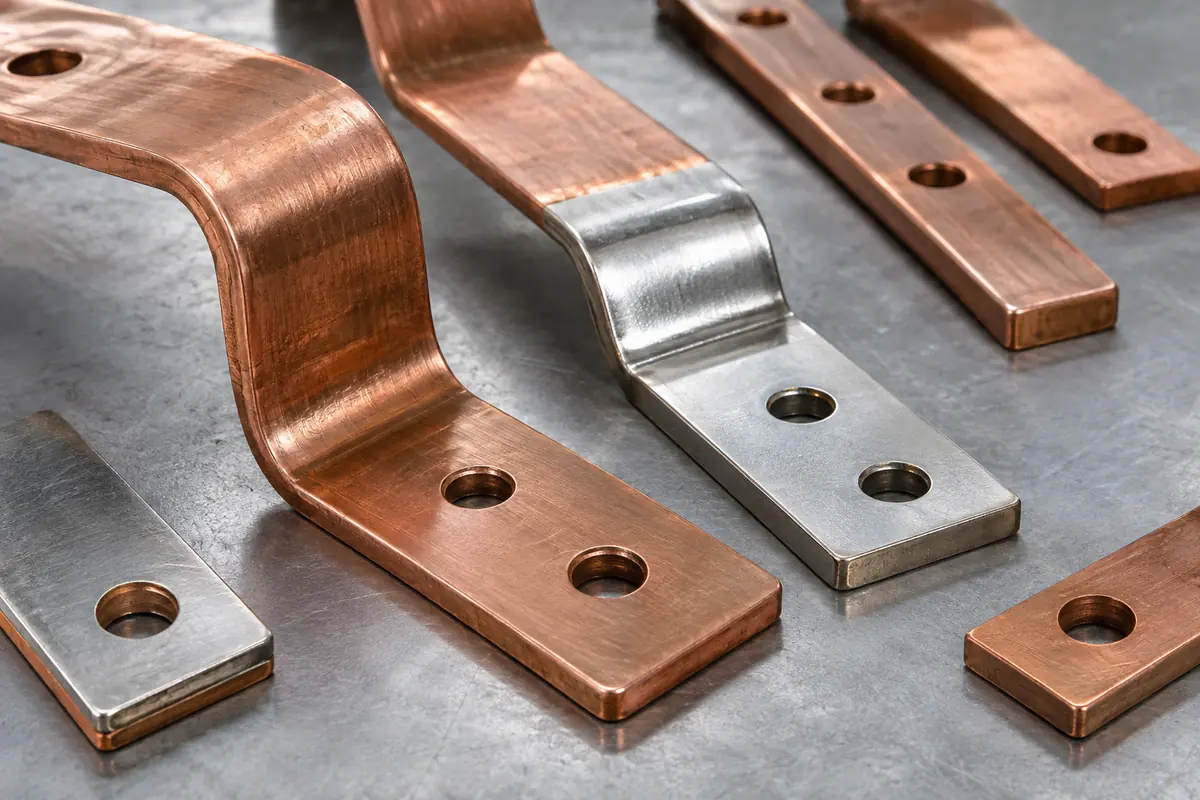

copper contact features positioned for dimensional inspection — Figure 3. Copper contact features positioned for dimensional inspection.

From drawing to quote

Define the contact and non-contact requirements

The drawing should make geometry, material, finish, masking, and inspection expectations unambiguous.

STEP or native CAD and controlled drawings
Copper grade, thickness, and temper when relevant
Bend geometry and finished datums

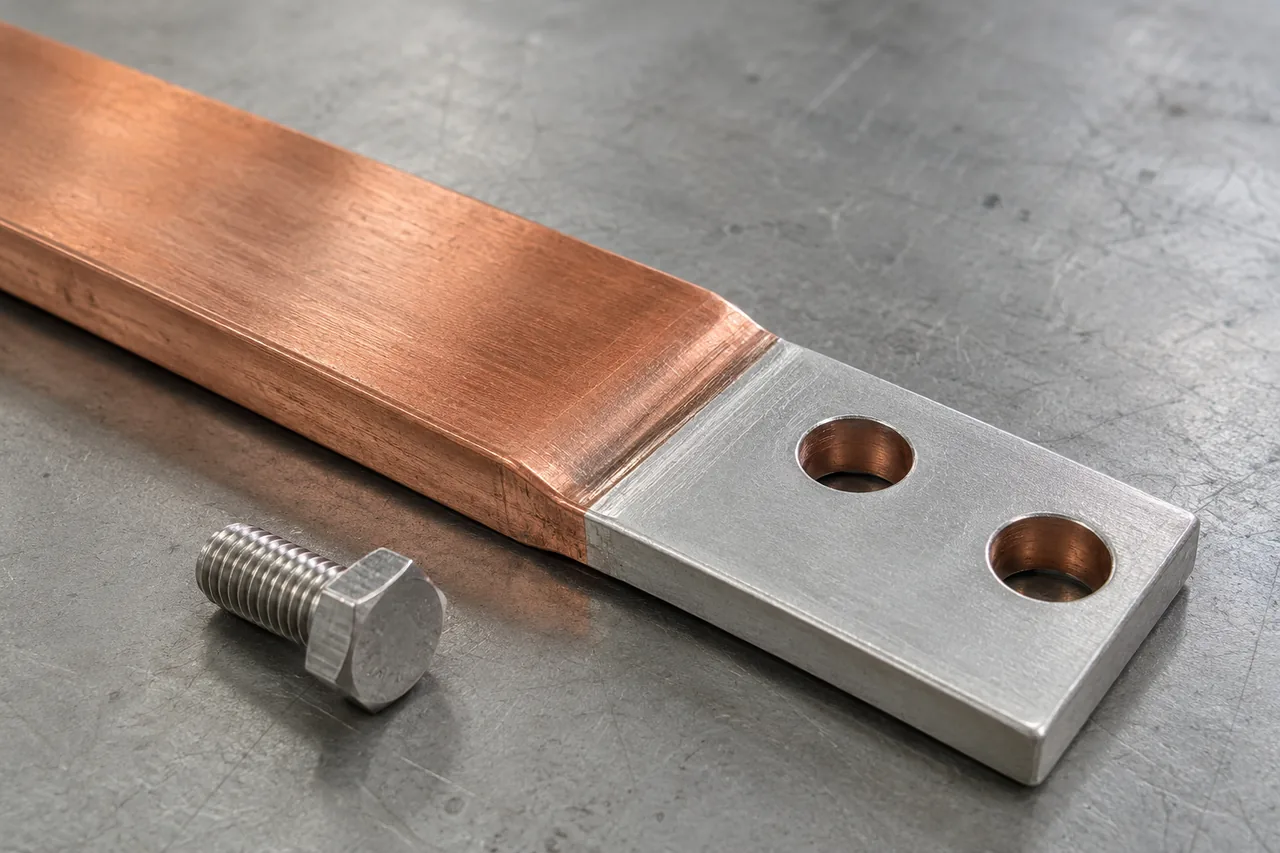

Contact regions, finish, and masking requirements
Quantity, revision, and delivery target
Requested dimensional, CMM, or material records

Busbar responsibility map

OEM-controlled

Electrical, thermal, insulation, safety, test, and certification requirements.

Supplier-quoted

Customer-defined copper geometry, approved finish, and requested dimensional or material records.

Figure 4. The OEM defines performance; the supplier manufactures the controlled component scope.

Manufacturing scope without electrical design claims

MakerStage can quote customer-defined cutting, holemaking, bending, machining, and approved finishes.
The OEM owns ampacity, voltage drop, temperature rise, insulation, clearance, creepage, and fault requirements.
Electrical, dielectric, thermal, fault, safety, and certification testing are outside this verified component scope.
Dimensional and material records do not establish electrical or thermal performance.

Technical references

These sources support industry terminology and interface context. MakerStage scope is limited to the manufacturing services published on its capabilities page.
